The AutoPID Plus digital thermostat has several easy and advanced functions that help the user to obtain and control the desired temperature more effectively. One of the advanced and differentiating functions in relation to other instruments, is the intelligent PID system (Proportional, Integral, Derivative) used to control the temperature with the minimum allowable oscillation.

AutoPID plus uses the Critical Period method to automatically calculate its PID parameters. This method consists of making the system temperature oscillate around the setpoint (temperature value to be reached and maintained) so that it is possible to remove the data necessary for the adjustment of the controller.

World reference brand in electronic controllers.
Supplied with the temperature sensor cable, 0-10V static relay and manual. We give all the support in the assembly.

Technical Specifications:

• Power supply: 230V ±10% (50/60 Hz);
• Control temperature: -50~100°C (-58~212°F);
• Operating temperature: 0~50°C (32~122°F);
• Operatting humidity: 10~90% UR (non-condensing);
• Decimal indication resolution: 0,1°C between -10 and 100°C and 1°C in the remaining range;
• Decimal control resolution: 0,1°C over the entire range;
• Available connections: Heating/cooling system, power supply;

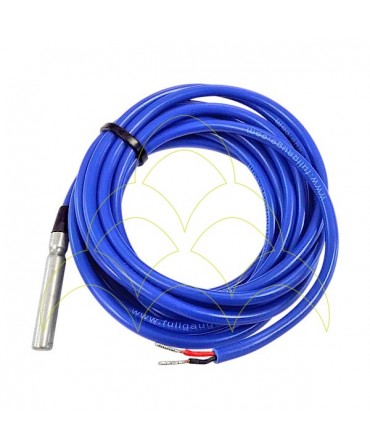

• Temperature sensor cable: Ø3,5mmxC.2,5m; 40g;
• Static relay 0-10V: W.45xD.32xH.58mm; 71g;
